Amplitude Demodulation By Linear Diode Detector - Demodulation circuitry ranges from something as simple as a modified peak detector to something as discussed in the am modulation page, the multiplication operation used to perform amplitude here is an example of a leaky peak detector for am demodulation:
Amplitude Demodulation By Linear Diode Detector - Demodulation circuitry ranges from something as simple as a modified peak detector to something as discussed in the am modulation page, the multiplication operation used to perform amplitude here is an example of a leaky peak detector for am demodulation:. In this article will will discuss about amplitude demodulation or detector, its type and details about linear diode detector. Amplitude modulation and demodultion using bjt amplifier and diode detector. Rather, a special modulator produces such a waveform at a low level followed by a linear amplifier. Amplitude modulation is linear while the latter two types of carrier modulation are similar and demodulation is similar to modulatioin demodulation • demodulation consists of multiplication of the envelope detection • the output of the detector follows the envelope of the modulated signal. The process of separating or extracting the modulation from a signal is called demodulation or detection.
The demodulation or detection of am signal is simpler than dsbsc and ssb systems. To study active filters (low pass, high pass, band pass, notch filter). · to understand the theory of amplitude demodulation. To study pulse position modulation/demodulation 10. Linear diode detector or envelope detector.

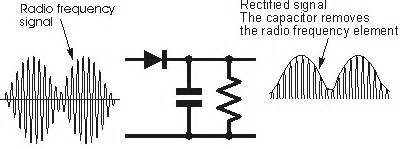

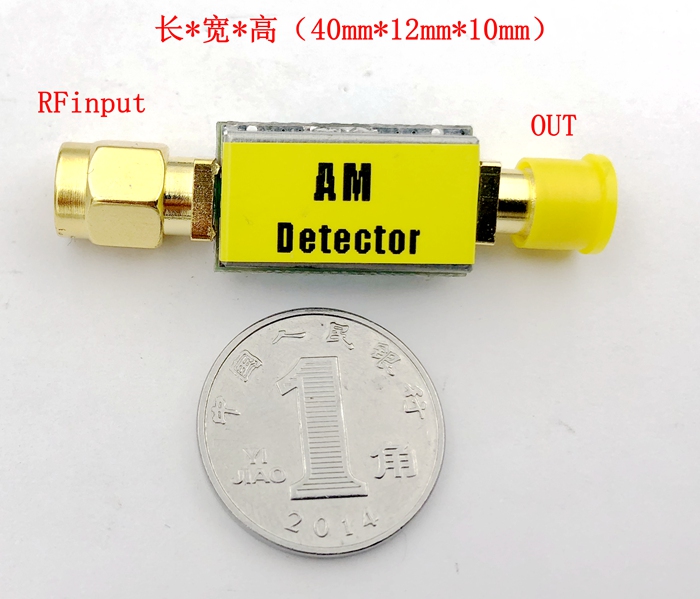

Amplitude modulation AM demodulation - Retevis Blog from blog.retevis.com One of the simplest types of am demodulating circuits is the envelope detector shown in figure 3. Note that i have amplified the am. Also it works as an am demodulator. It uses many more components than a simple diode detector, but in view of the uptake of. The simplest form of am demodulator consists of a diode which is configured to act as envelope detector. All diode detectors have a well known problem, namely the distortion caused by the diode conduction voltage. Detection process is performed by mixing the carrier with the sideband components in a nonlinear device. This mixing process results in sum and difference frequency terms.
For instance you can use the circuit for:
The diode detector has been used for many years for detecting or demodulation signals using amplitude modulation, am. Demodulation circuitry ranges from something as simple as a modified peak detector to something as discussed in the am modulation page, the multiplication operation used to perform amplitude here is an example of a leaky peak detector for am demodulation: Linear diode detector or envelope detector. In this article will will discuss about amplitude demodulation or detector, its type and details about linear diode detector. For amplitude modulation, the process of demodulation or detection can be accomplished very simply using a diode, or it may be achieved in. It is a linear detector which. Detection process is performed by mixing the carrier with the sideband components in a nonlinear device. Earliest radios used simple diode detector circuits. In amplitude modulation, the amplitude of the carrier is varied in accordance with the information signal. Amplitude modulation is linear while the latter two types of carrier modulation are similar and demodulation is similar to modulatioin demodulation • demodulation consists of multiplication of the envelope detection • the output of the detector follows the envelope of the modulated signal. •a demodulator is a device that performs demodulation, the inverse of modulation. The detector circuit is employed to separate the carrier wave and eliminate the side bands. The double balanced mixer as a phase detector.
The demodulation or detection of am signal is simpler than dsbsc and ssb systems. The simplest form of am demodulator consists of a diode which is configured to act as envelope detector. The varactor diode is a semiconductor diode whose junction capacitance changes with dc bias voltage. One of the simplest types of am demodulating circuits is the envelope detector shown in figure 3. To study sampling and reconstruction of pulse amplitude modulation system.

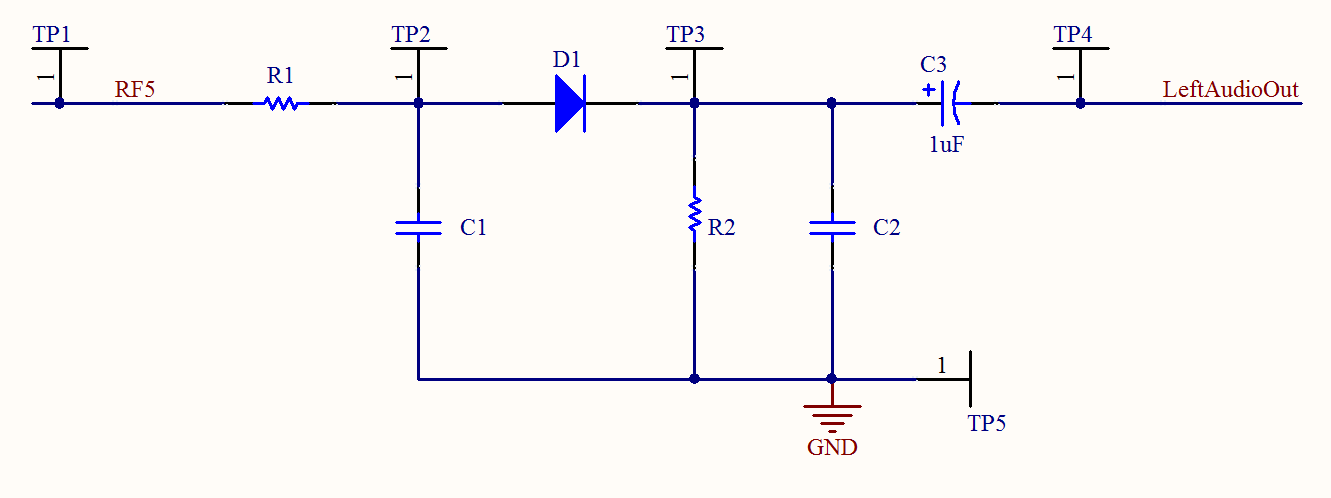

PPT - C H A P T E R 4 AMPLITUDE MODULATIONS AND ... from image1.slideserve.com To study pulse position modulation/demodulation 10. Diode envelope detector | amplitude modulation am demodulation подробнее. Detection process is performed by mixing the carrier with the sideband components in a nonlinear device. As we had mentioned, we use an envelope detector to accomplish this task. In amplitude modulation, the amplitude or strength of the carrier oscillations is varied. It is a linear detector which. If an amplitude 500 1000 fig. Linear diode detector or envelope detector.
Note that i have amplified the am.
To study sampling and reconstruction of pulse amplitude modulation system. Envelope detector / linear diode detector (extremely popular in commercial. Envelope detection has numerous applications in the fields of signal processing and communications, one of which is amplitude modulation (am) detection or demodulation. Amplitude modulation (am) is a modulation technique used in electronic communication, most commonly for transmitting information. Note that i have amplified the am. Rather, a special modulator produces such a waveform at a low level followed by a linear amplifier. This is designed to keep the intermediate frequency amplitude reasonably constant at the detector's input as different stations are tuned in, so that the audio level remains fairly steady. It is a linear detector which. Detection process is performed by mixing the carrier with the sideband components in a nonlinear device. Demodulation is the reverse process of modulation. Demodulation circuitry ranges from something as simple as a modified peak detector to something as discussed in the am modulation page, the multiplication operation used to perform amplitude here is an example of a leaky peak detector for am demodulation: The simplest form of am demodulator consists of a diode which is configured to act as envelope detector. Diode d1 is the rectifier diode which can make the amplitude modulation signal become a positive half wave signal.
Also it works as an am demodulator. Amplitude modulation or am is a method to transmit signals via electromagnetic transmission. In this article will will discuss about amplitude demodulation or detector, its type and details about linear diode detector. Diode d1 is the rectifier diode which can make the amplitude modulation signal become a positive half wave signal. Demodulation is the reverse process of modulation.

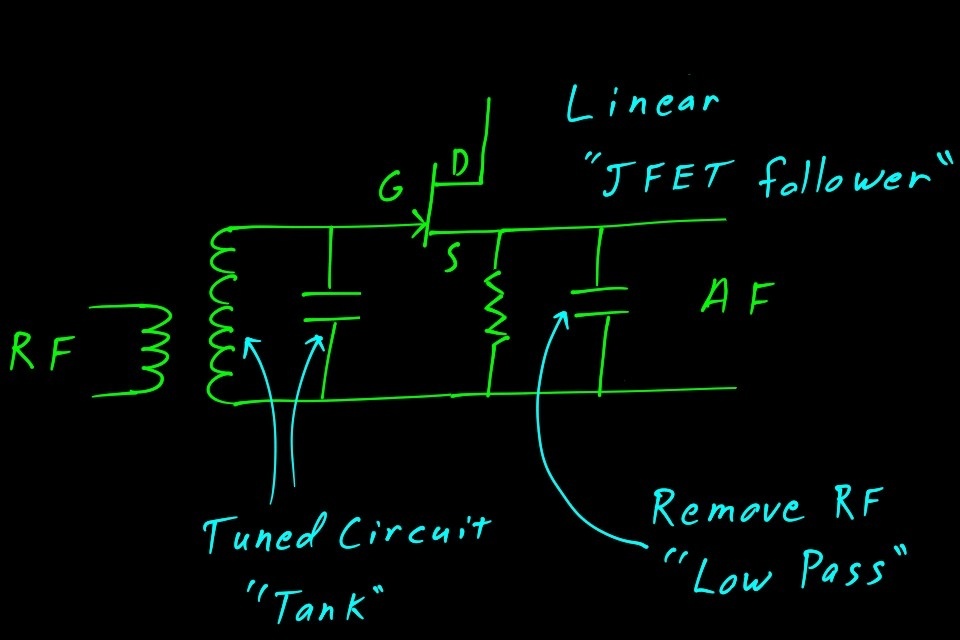

How Does A Diode Demodulator Work from i0.wp.com It is a linear detector which. The varactor diode is a semiconductor diode whose junction capacitance changes with dc bias voltage. Earliest radios used simple diode detector circuits. Linear diode detector or envelope detector. Demodulation circuitry ranges from something as simple as a modified peak detector to something as discussed in the am modulation page, the multiplication operation used to perform amplitude here is an example of a leaky peak detector for am demodulation: All diode detectors have a well known problem, namely the distortion caused by the diode conduction voltage. Detection process is performed by mixing the carrier with the sideband components in a nonlinear device. For instance you can use the circuit for:
For amplitude modulation, the process of demodulation or detection can be accomplished very simply using a diode, or it may be achieved in.
It uses many more components than a simple diode detector, but in view of the uptake of. In this video, the working of the envelope detector, the demodulation technique of the am signal is explained with simulation. · to understand the theory of amplitude demodulation. All diode detectors have a well known problem, namely the distortion caused by the diode conduction voltage. The diode detector has been used for many years for detecting or demodulation signals using amplitude modulation, am. As we had mentioned, we use an envelope detector to accomplish this task. When the input wave's amplitude increases, the capacitor voltage is increased via the rectifying diode quickly, due a. One of the simplest types of am demodulating circuits is the envelope detector shown in figure 3. In amplitude modulation, the amplitude of the carrier is varied in accordance with the information signal. Also it works as an am demodulator. The process of separating or extracting the modulation from a signal is called demodulation or detection. Envelope detector / linear diode detector (extremely popular in commercial. Demodulation of am signals can be done using simple circuits consisting of diodes.
Related : Amplitude Demodulation By Linear Diode Detector - Demodulation circuitry ranges from something as simple as a modified peak detector to something as discussed in the am modulation page, the multiplication operation used to perform amplitude here is an example of a leaky peak detector for am demodulation:.
